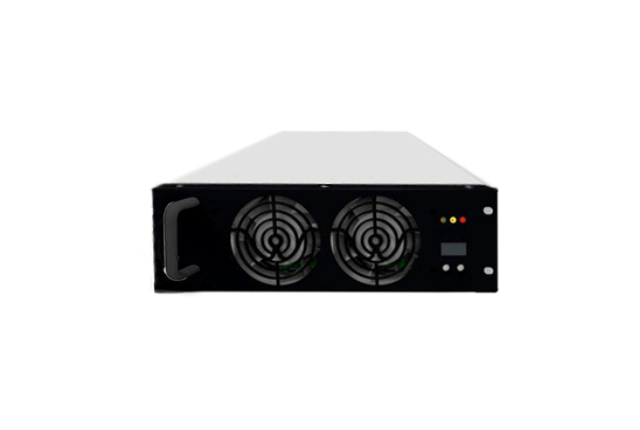

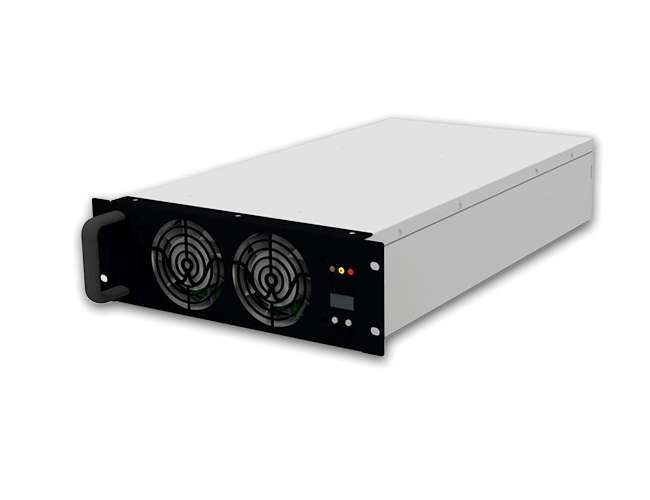

The MXC150062B is a bidirectional DC/DC module that supports power flow in both directions. It has a high power output of 62.5 kW and fast and efficient charging capabilities. The module supports a wide range of voltages, from 300V to 1450V, and is flexible and compatible with various power systems and electric vehicle requirements. It is equipped with an independent air duct system that effectively isolates current and safeguards the system from external interference and faults.
| Module | MXC150062B | |

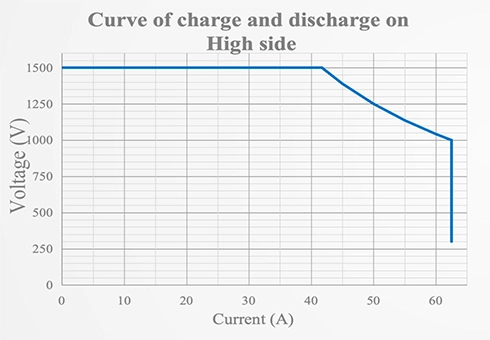

| High Voltage Side | Voltage Range | 300VDC～1500VDC |
| Max Current | 62.5A | |
| Stabilized Voltage Precision | ＜±0.5％ | |
| Ripple Peak | ＜1% | |
| Current Sharing Imbalance | ＜±5% | |

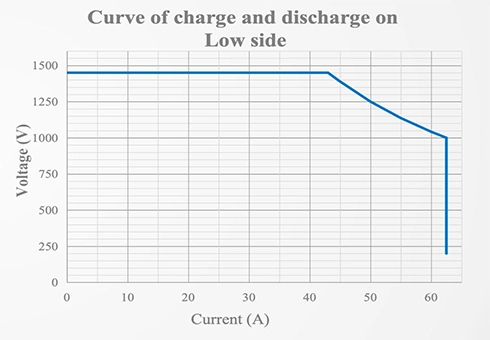

| Low Voltage Side | Output Power | 62.5KW |
| Voltage Range | 300～1450VDC | |
| Max Current | 62.5A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1% (output loading 20%~100% rated range) | |
| Ripple Peak | ≤1% | |
| Current Sharing Imbalance | ≤±5% | |

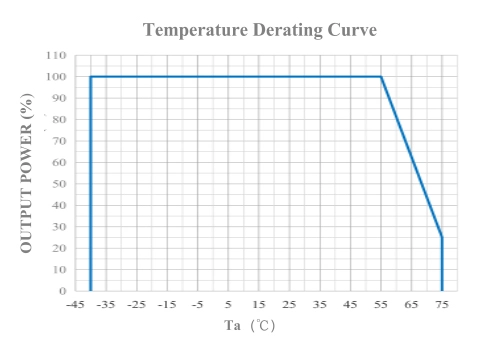

| Environment Condition | Operating Temperature | －40℃～＋75℃, output derating at above 55℃ |
| Altitude | ≤ 2000m, output derating above 2000m | |
| Basic Index | Size(W×D×H) | 240×455×87mm |
| Weight | ≤10kg | |
| Power | 62.5KW | |
| Efficiency | >99% | |
| Cooling | Fan Cooling | |
| Communication | CAN Communication | |
| Parallel | ≤60 PCs | |
