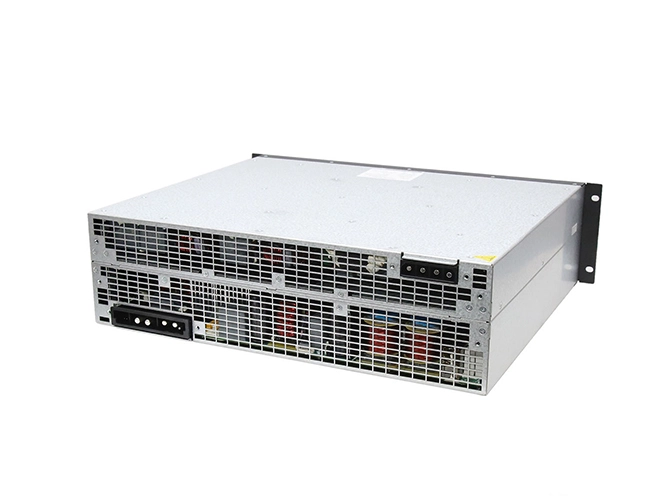

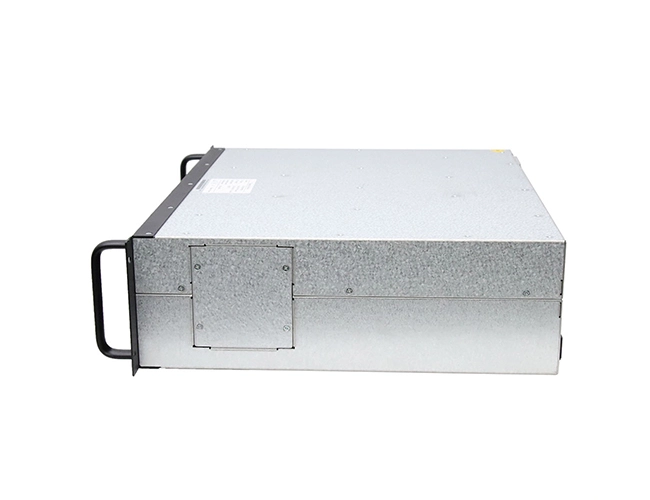

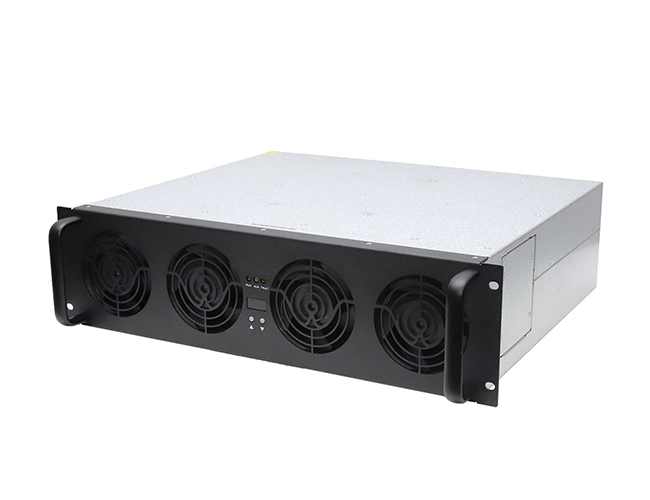

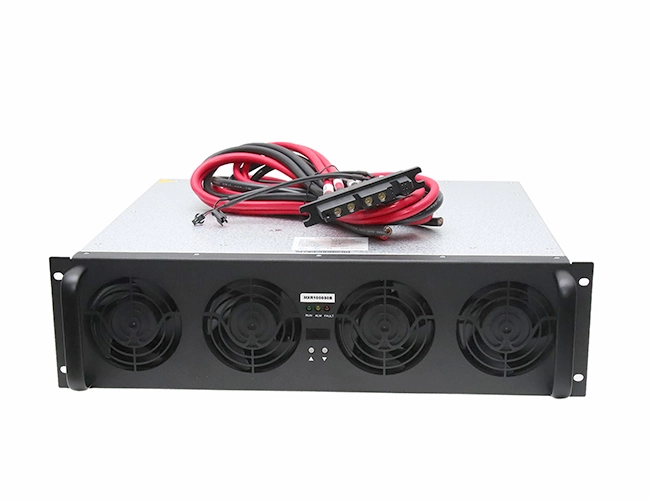

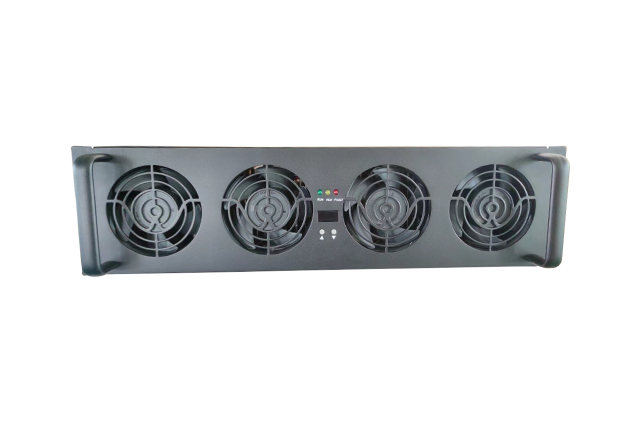

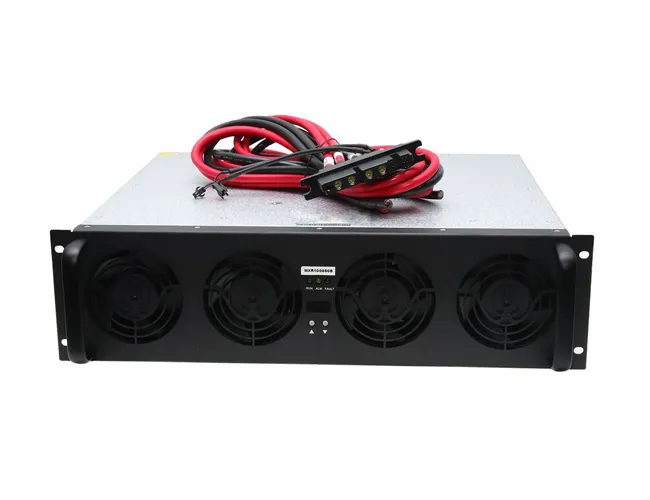

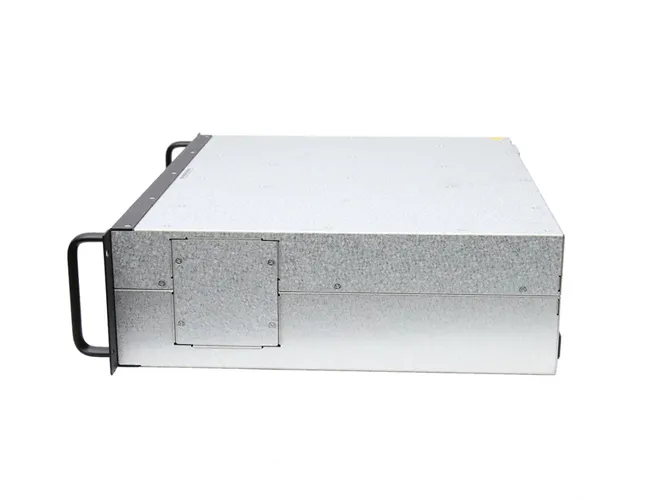

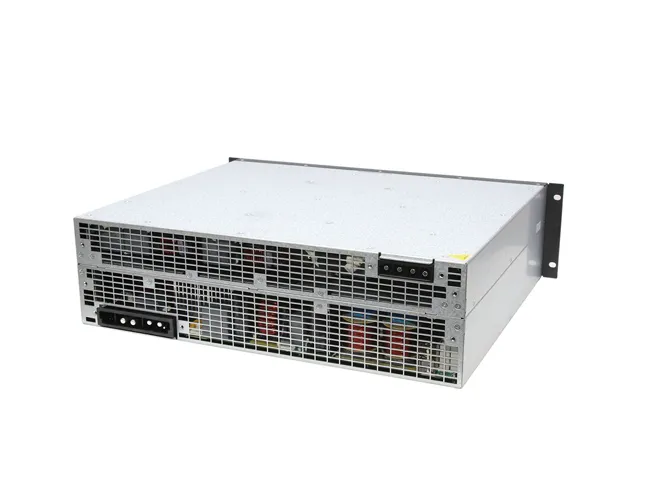

The MXR100050B is a high amp AC to DC converter charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kw, and supports 260VAC~530VAC 3 phase ac to dc rectifier (A/B/C +PE) input, the output voltage range is 200VDC~1000VDC, the maximum output current is 167 A, supports silent mode setting, in silent mode, the noise is less than 55dB.
The charging module uses the isolated controller area network (CAN) communications port to communicate with the system monitoring module through the CAN protocol.
| Module | MXR10050B | |

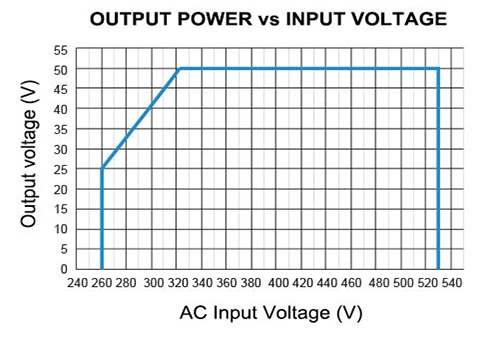

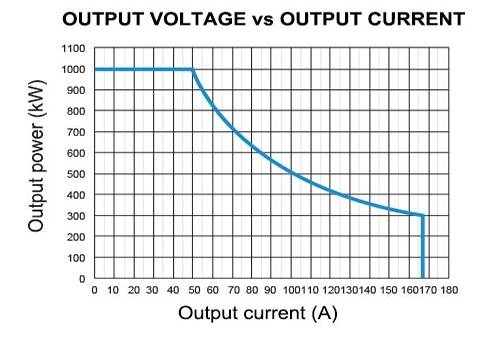

| Input Characteristics | Input Voltage | 260-530Vac, 3 phase ac to dc rectifier + PE |
| Input Current | <100A | |
| Grid frequency | 45-65Hz | |
| Power Factor | >0.99(Load≥50%) | |
| ITHD | <5%(Load≥50%) | |
| Output Characteristics | Output Power | 50kW |
| Voltage Range | 200-1000Vdc | |
| Current Range | 0-167A continuously adjustable | |
| Voltage Regulation accuracy | 士0.5% | |
| Stabilized Current accuracy | ≤土1%(Output current≥20% Max current) | |
| Ripple Peak-to-Peak | <1% | |
| Current Imbalance unbalance | ＜土5%(Output current≥50% Max current) | |

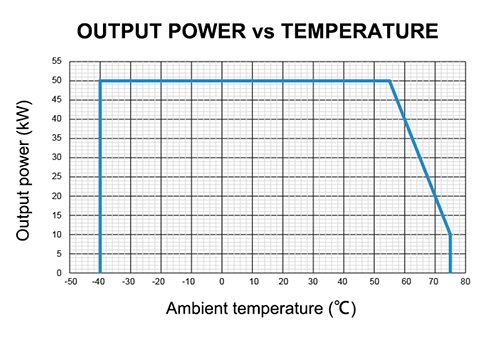

| Environmental Conditions | Full load working temperature | -40℃～75℃(derating is required above 55℃) |
| Storage Temperature | -40℃～80℃ | |
| Relative Humidity | ≤95% RH without condensation | |
| Altitude | ≤2000m (derating can be used above 2000m) | |
| Basic Indicators | Size(W×D×H) | 440×380×125mm |
| Weight | <23kg | |
| Cooling Method | Forced air cooling | |
| Protection Level | IP20 | |
| Standby Power consumption | <10W | |
| Communication | CAN bus | |
| Parallel Quantity | ≤60 pieces | |
Our products are widely used in automotive, electric power, railway, metallurgy, communications and other fields, and its performance cases are spread all over the country and around the world.
