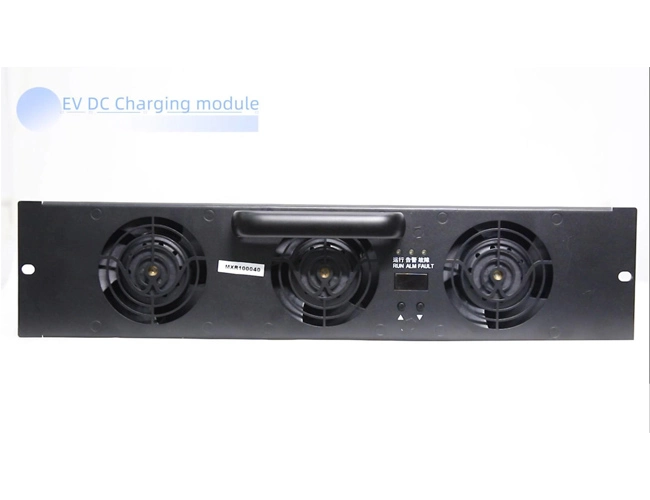

The MXR100040 electric vehicle charging station module is a high-power solution with a three-phase + PE power supply and a power of 40kw, making it ideal for fast charging. It also has safety features such as over-temperature and over-voltage protection. With an intelligent management system, it can monitor charging status and energy consumption in real time, and it is suitable for 120kw 160kw 240kw 480kw, etc various EV charging systems and stations for versatile usage.
AC Input Power Limiting Curve
Output Voltage VS Output Current Curve
Temperature Limiting Power Curve
| Module | MXR100040 | |
| Input Characteristics | Input Voltage | 285-475Vac, three-phase + PE |
| Input Current | <80A | |
| Grid frequency | 45-65Hz | |
| Power Factor | ≥0.95(8kw≤output power≤20kw); ≥0.98(20kw≤output power≤40kw) | |
| ITHD | ≤5％(20kw≤outputpower≤40kw) | |
| Output Characteristics | Output Power | 40kW@ output volatge ≥300Vdc |
| Voltage Range | 100-1000Vdc, default value: 200Vdc | |
| Current Range | 0-133.3A | |
| Voltage Regulation accuracy | ≤±0.5％(Stabilized voltage state,input voltage 323Vac~456Vac,output voltage 200Vdc~1000Vdc,output current 0 ~ rated current value) | |
| Stabilized Current accuracy | ≤±1％(In steady current state, the input voltage is 323Vac~456Vac, the output voltage is 200Vdc~1000Vdc, and the output current is 20% rated current~100% rated current value ) | |
| Current Sharing Imbalance | ≤±3% | |
| Ripple Peak to Peak | ≤±1% | |
| Environmental Conditions | Full load working temperature | －40℃～＋75℃,output derating above 55℃ |
| Storage Temperature | -40℃～+75℃ | |
| Relative Humidity | ≤95% RH ,Non-condensation | |
| Altitude | No derating below 2000m, When the altitude is above1000m, it needs to set the actual altitude value, the working temperature decreases by 1°C for each additional100m | |
| MTBF | >500000 hours | |
| Basic Indicators | Size(W×D×H) | 360×459×85mm |
| Weight | ≤20kg | |
| Efficiency(full load) | >95.5% | |
| Cooling Method | Fan cooling | |
| Standby Power consumption | <13W | |
| Communication | CAN bus | |
| Parallel Quantity | ≤60 pieces | |
| Indicator | Green: normal operation Yellow: alarm Red: fault | |
| Certification | CE/Dekra/EMC | |
