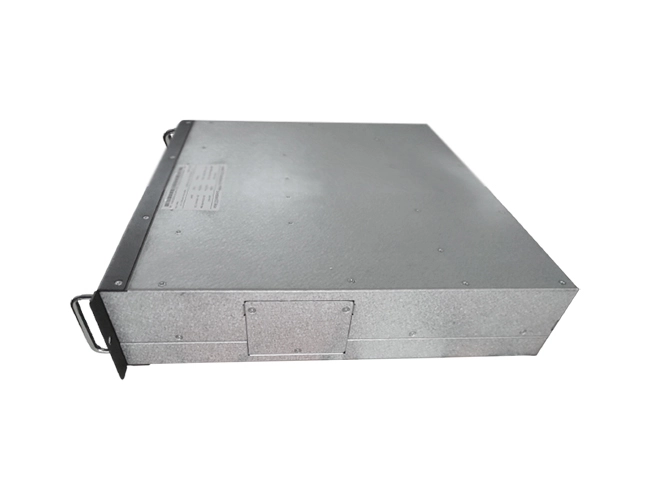

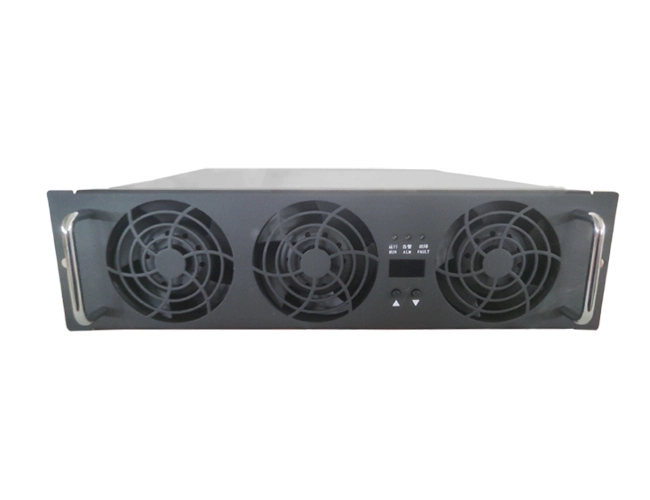

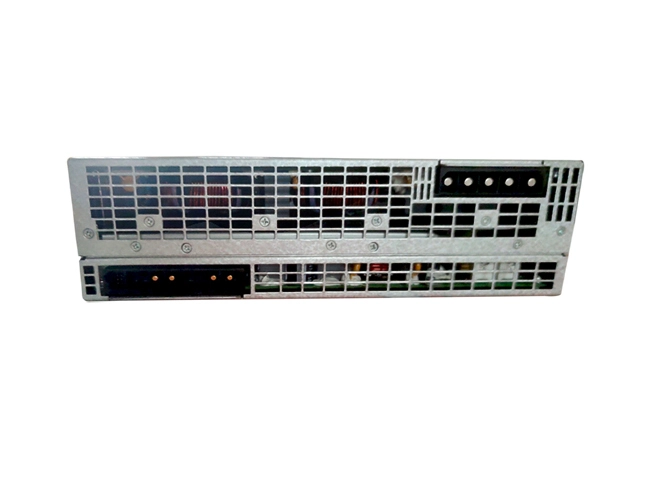

MXB100022 is the bidirectional AC/DC power module, featuring a wide constant power voltage range, high efficiency, high power density, low electromagnetic radiation and interference, and high reliability. It can be widely used in applications such as V2G, energy storage, retired battery utilization, and production testing equipment.
Input Characteristic Curve(rectification)
Input Characteristic Curve (on-grid)
Input Characteristic Curve(off-grid)
Output Characteristic Curve(rectification)
On-grid Output Characteristic Curve
Temperature Derating Curve
| Product Model | MXB100022 | |
| Basic Specifications | Dimensions | 85mm（ H）×300mm（W）×395mm（ D） |
| Weight | 14kg | |
| Efficiency (full load) | >95.5% | |
| Cooling Mode | Forced air cooling | |
| Communication Bus Protocol | CAN bus | |
| No . of Parallel Modules | ≤8pcs | |
| Indicator | Green /Yellow / Red | |
| Input System | 3P+PE | |
| AC Side -Rectified/on-grid | Voltage Range | 260Vac-530vac |
| Rated Voltage | 380Vac | |
| Rated Current | 33A | |
| Grid Frequency | 45Hz～65Hz, adjustable | |
| Rated Frequency | 50Hz/60Hz | |
| AC Side - off-grid | Input System | 3P + N + PE |
| Voltage Range | 380Vac | |
| Rated Voltage | 380Vac, not adjustable | |
| Rated Current | 33A | |
| Rated Frequency | 50Hz, not adjustable | |
| Output Voltage Phase Angle | <3° at balanced load | |
| THD | <3% | |
| DC Side | Voltage Range | 200Vdc-1000vdc |
| Current Range | 0-73.3A, current limiting point adjustable | |
| Rated Current | 22A @1000V | |
| Voltage Stabilized Accuracy | <±0.5% | |
| Current Stabilized Accuracy | ≤±1% output load 20%～100% of rated range | |
| Load Regulation | ≤±0.5% | |
| Environmental Specifications | Operating Temperature | -40℃~+75℃, derating required above 55℃ |
| Storage Temperature | -40℃~+75℃ | |
| Relative Humidity | -40℃~+75℃ | |
| Altitude | ≤2000 m no derating required;>1000m, the operating temperature decreases by 1°C for each additional 100m. | |
| MTBF | >500.000 hrs | |
