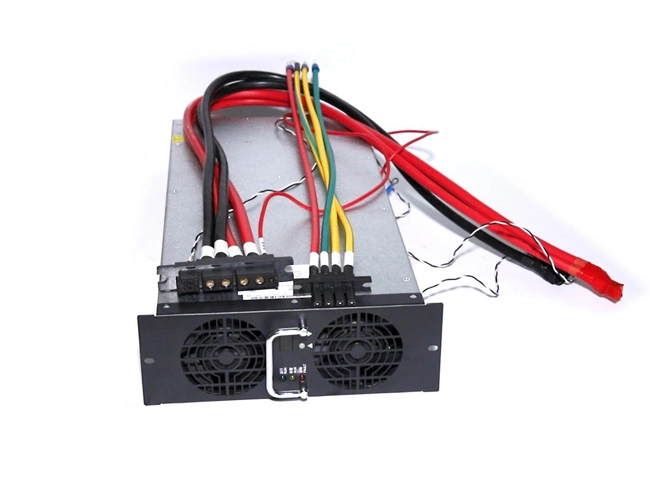

MXR100200B is a low voltage and high current charging module that offers a powerful 20kw output and a wide voltage range, making it the ideal solution for low-voltage vehicles. Its advanced technology allows for seamless conversion of AC to DC, providing a fast and efficient charging experience for EV owners. With its compact design and easy installation process, MXR100200B is a convenient choice for businesses looking to enhance their EV charging capabilities and attract more customers.
| Module | MXR100200B | |
| Input Characteristics | Input Voltage | 190-530Vac, three-phase + protective earth |
| Input Current | <40A | |
| Grid frequency | 45-65Hz | |
| Power Factor | ≥0.99 (10KW≤Output power ≤20KW) | |
| ITHD | ≤5% (10KW≤Output power ≤20KW) | |
| Output Characteristics | Output Power | 20kw |
| Voltage Range | 20-120Vdc | |
| Current Range | 0~200A (continuously adjustable) | |
| Rated Current | 200A | |
| Voltage Regulation accuracy | ≤±0.5% （60V-100V，0～20MHz） | |
| Stabilized Current accuracy | ≤±1% (output current 20% rated current~100% rated current) | |
| Current Sharing Imbalance | ≤±5% | |
| Ripple Peak to Peak | ≤1% | |
| Environmental Conditions | Full load working temperature | -40℃～75℃, output derating above 50℃ |
| Storage Temperature | -40℃～+75℃ | |
| Relative Humidity | ≤95% RH ,Non-condensation | |
| Altitude | No derating below 2000m,When the altitude is above 2000m, the operating temperature decreases by 1℃ for each additional 100 m | |
| MTBF | >500000 hours | |
| Basic Indicators | Size(W×D×H) | 218×459×84mm |
| Weight | ≤12kg | |
| Efficiency(full load) | >93.5% | |
| Cooling Method | Fan cooling | |
| Standby Power consumption | 8.5W+/-0.5W | |
| Communication | CAN bus | |
| Parallel Quantity | ≤60 pieces | |
| Indicator | Green: normal operation Yellow: alarm Red: fault | |
| Certification | UL | |
